Surge Protection

Protect cameras, switches and NVRs on outdoor and long cable runs.

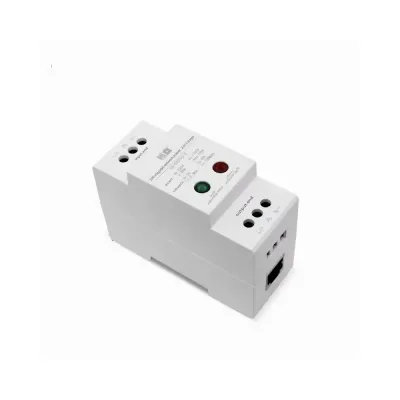

SP-SG301 white DIN rail two-in-one network and power surge protector

DIN Rail Network & 220 V Power Surge Protector

Model: SP-SG301

Max discharge current (Imax): 10 kA

MOQ 100 pcsDetails

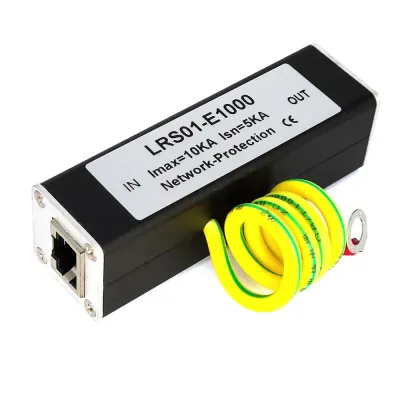

SP-SG302 gigabit Ethernet surge protector with RJ45 in and out and ground wire

Gigabit Ethernet Surge Protector, RJ45

Model: SP-SG302

Max discharge current (Imax): 10 kA
Data rate: 10/100/1000 Mbps
Response time: ≤ 1 ns

MOQ 10 pcsDetails

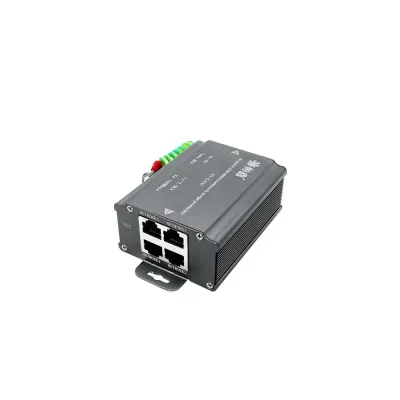

SP-SG303 four-port RJ45 network surge protector in aluminium housing

4-Port RJ45 Surge Protector, 100 Mbps

Model: SP-SG303

Max discharge current (Imax): 5 kA
Data rate: 100 Mbps
Response time: ≤ 1 ns

SP-SG304 white IP66 outdoor PoE surge protector with ground lead

Outdoor PoE Surge Protector, Gigabit, IP66

Model: SP-SG304

Max discharge current (Imax): 5 kA
Data rate: 10/100/1000 Mbps
Response time: ≤ 0.1 ns

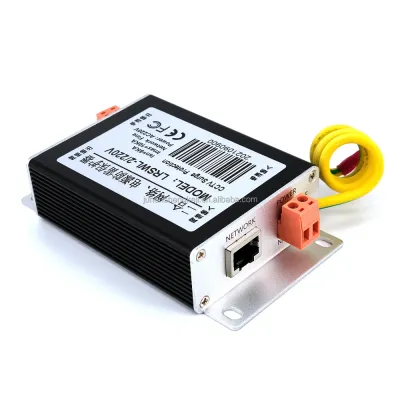

SP-SG305 two-in-one network and power surge protector with terminals and RJ45 ports

2-in-1 Network & 220 V Power Surge Protector

Model: SP-SG305

Max discharge current (Imax): 10 kA
Data rate: 10/100/1000 Mbps
Response time: ≤ 1 ns

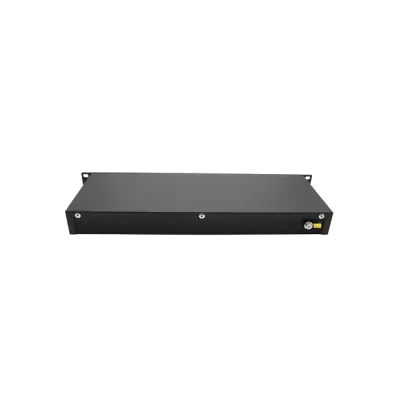

SP-SG306 19 inch rack-mount multi-port Ethernet surge protector

Rack-Mount Ethernet Surge Protector, 16/24 Port

Model: SP-SG306

Max discharge current (Imax): 5 kA
Data rate: 100 Mbps or 1000 Mbps versions
Response time: ≤ 1 ns

MOQ 100 pcsDetails

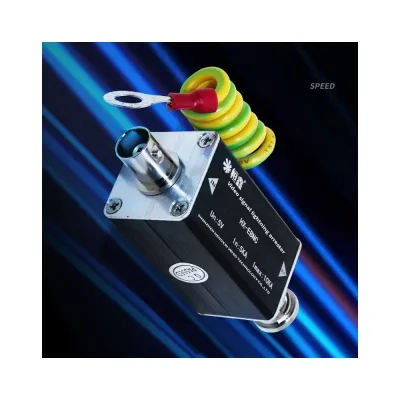

SP-SG307 aluminium BNC video surge protector with ground lead

BNC Video Surge Protector

Model: SP-SG307

Max discharge current (Imax): 10 kA
Response time: ≤ 1 ns

Compare models

Model	Max discharge current (Imax)	Data rate	Response time	Nominal discharge current (In)	Insertion loss	Size	MOQ
SP-SG301	10 kA	—	—	5 kA	0.1 dB	96 × 66 × 36 mm	100 pcs
SP-SG302	10 kA	10/100/1000 Mbps	≤ 1 ns	5 kA	≤ 0.5 dB	—	10 pcs
SP-SG303	5 kA	100 Mbps	≤ 1 ns	2.5 kA	≤ 0.1 dB	—	On request
SP-SG304	5 kA	10/100/1000 Mbps	≤ 0.1 ns	2.5 kA	≤ 0.5 dB	—	On request
SP-SG305	10 kA	10/100/1000 Mbps	≤ 1 ns	5 kA	—	—	On request
SP-SG306	5 kA	100 Mbps or 1000 Mbps versions	≤ 1 ns	—	≤ 0.5 dB	445 × 160 × 45 mm (19" 1U)	100 pcs
SP-SG307	10 kA	—	≤ 1 ns	5 kA	—	77 × 25 × 25 mm	On request

Not sure which model fits? Send the devices, cable lengths and environment and we will recommend one.
