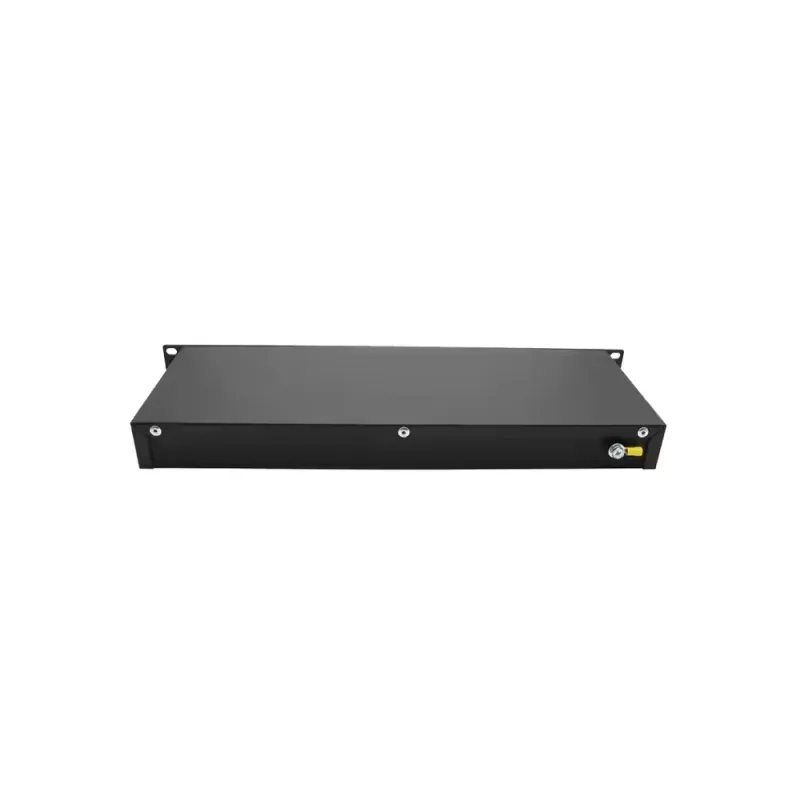

SP-SG306 19 inch rack-mount multi-port Ethernet surge protector

Model: SP-SG306

Rack-Mount Ethernet Surge Protector, 16/24 Port

19-inch 1U surge protector panel for the switch end of many camera runs, in 16- or 24-port versions.

16 / 24 ports
19" 1U
100M or 1000M

Minimum order: 100 pcs
Samples: Available
OEM: Logo & packaging

Get a Quote for SP-SG306

Specifications

Ports	16 or 24 protected channels (RJ45 in/out)
Data rate	100 Mbps or 1000 Mbps versions
Max discharge current (Imax)	5 kA
Response time	≤ 1 ns
Insertion loss	≤ 0.5 dB
Operating temperature	-30 to +70 °C
Size	445 × 160 × 45 mm (19" 1U)
Housing	Galvanized steel

Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.

Typical use

Mount in the rack between the patch panel and the switch so every outdoor camera line is protected at the head end.

Notes before ordering

Specify port count and 100M or 1000M version. PoE pass-through is not stated by the manufacturer; tell us if the lines carry PoE.
