Products / Power & Protection / Surge Protection / SP-SG303

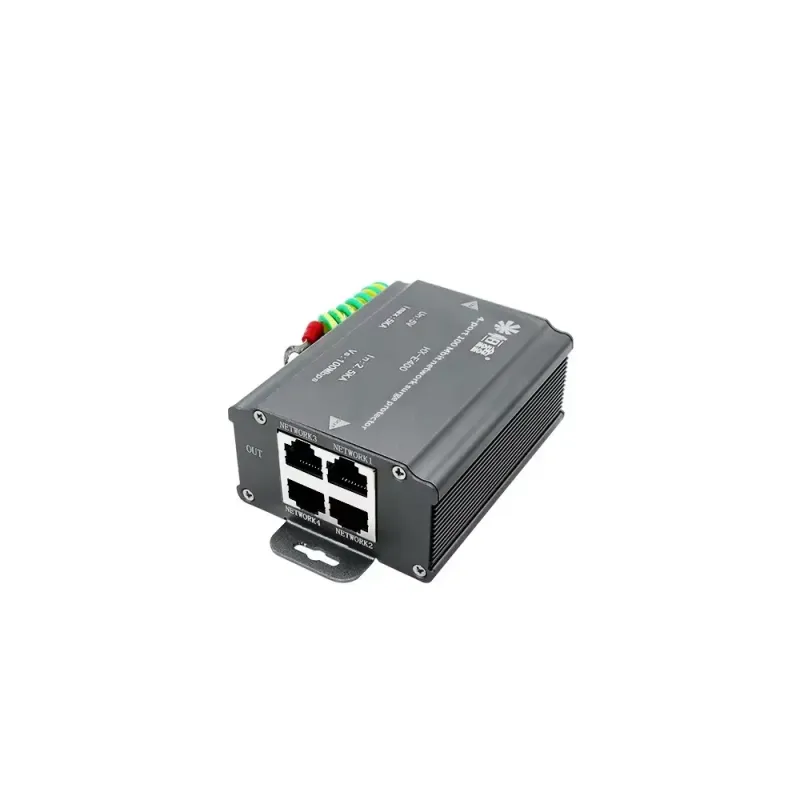

SP-SG303 four-port RJ45 network surge protector in aluminium housing
Model: SP-SG303

4-Port RJ45 Surge Protector, 100 Mbps

Compact four-channel network surge protector for small camera clusters and switch ports.

  • 4 ports
  • 100 Mbps
  • Imax 5 kA
Minimum order
On request
Samples
Available
Get a Quote for SP-SG303

Specifications

Ports4 protected channels (RJ45)
Data rate100 Mbps
Protected pairs1/2, 3/6
Operating voltage5 V
Nominal discharge current (In)2.5 kA
Max discharge current (Imax)5 kA
Response time≤ 1 ns
Insertion loss≤ 0.1 dB
Operating temperature-20 to +70 °C

Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.

Notes before ordering

  • Data lines only. It protects pairs 1/2 and 3/6 at 5 V and is not suitable for PoE; use SP-SG304 or SP-SG302 on PoE lines.
