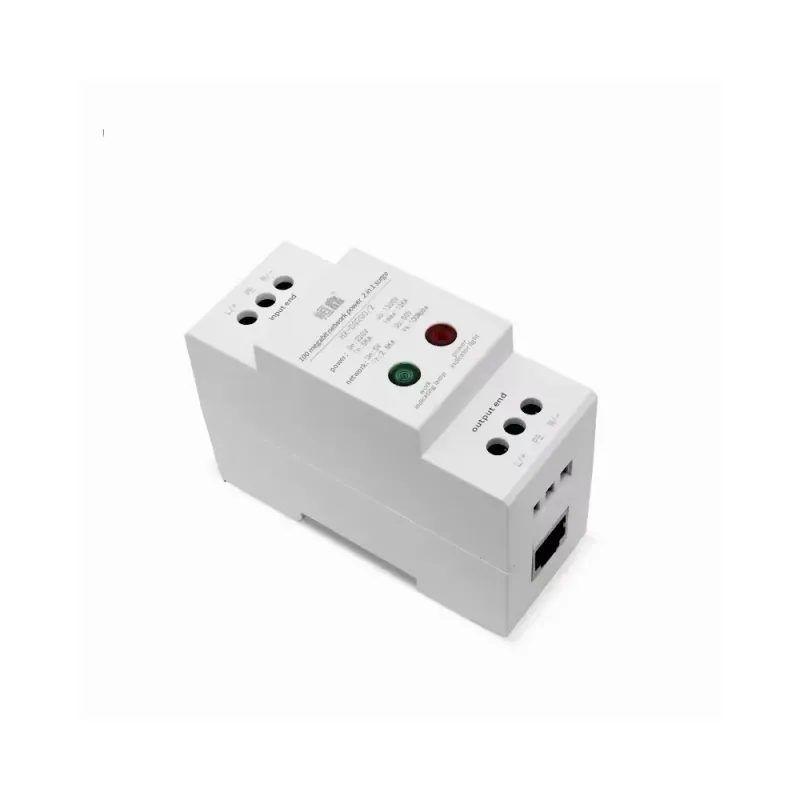

SP-SG301 white DIN rail two-in-one network and power surge protector

Model: SP-SG301

DIN Rail Network & 220 V Power Surge Protector

Two-in-one surge protector for 35 mm DIN rail cabinets, protecting a 100 Mbps network line and a 220 V AC supply.

35 mm DIN rail
RJ45 + 220 V AC
Imax 10 kA

Minimum order: 100 pcs
Samples: Available
OEM: Logo & packaging

Get a Quote for SP-SG301

Specifications

Protected lines	Ethernet (RJ45, 100 Mbps) + 220 V AC power
Mounting	35 mm DIN rail
Nominal discharge current (In)	5 kA
Max discharge current (Imax)	10 kA
Insertion loss	0.1 dB
Connections	RJ45 and screw terminals
Size	96 × 66 × 36 mm
Housing	Flame-retardant PC

Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.

Typical use

Install in the outdoor pole cabinet that feeds a camera with both network and 220 V power.

Notes before ordering

220 V AC only. Data rate is 100 Mbps.
AC wiring must be done by a qualified electrician.
