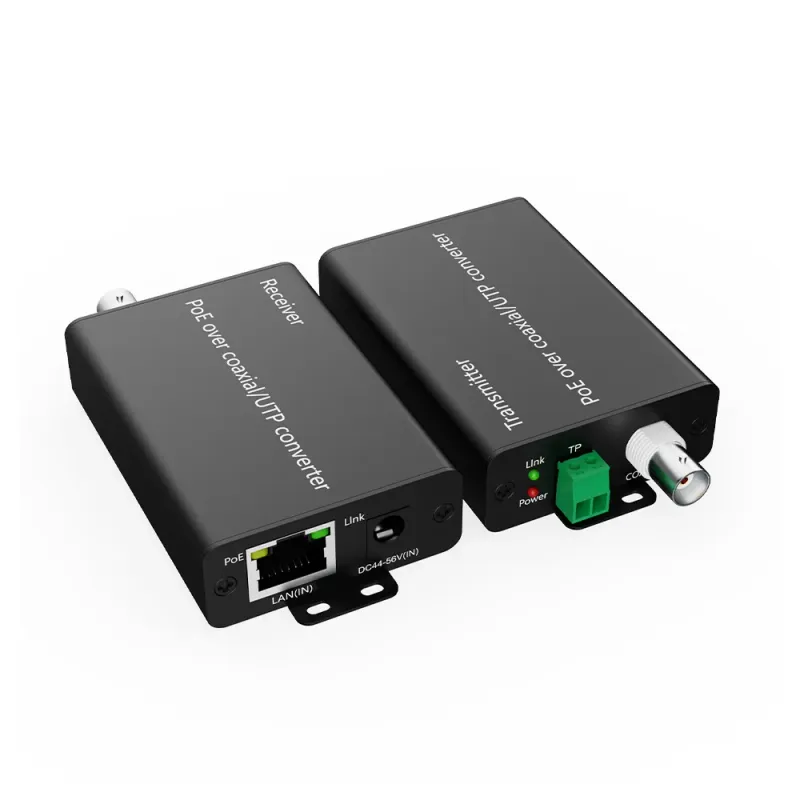

Model: SP-EC305
PoE Ethernet Extender Kit over Coax or 2-Wire
Master/slave extender pair powered by a standard PoE switch. Sends data and PoE over coax, twisted pair or telephone line to the camera end.
- PoE in & out
- 30 W max
- Coax / 2-wire
- Minimum order
- On request
- Samples
- Available
Specifications
| Network | 10/100 Mbps |
|---|---|
| Power input | Standard PoE (IEEE 802.3af/at) or DC 44–57 V |
| PoE output | Up to 30 W, IEEE 802.3af/at |
| Media | Coax, twisted pair or telephone line |
| Line port | BNC or 2-pin 3.81 mm terminal block |
| Size | 106 × 22 × 53 mm |
| Housing | Metal |
| Supplied as | Master + slave pair |
Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.
Typical use
Connect the master unit to a PoE switch port. It sends data and power over the existing two-wire line to the slave unit, which feeds the IP camera with PoE. No power is needed at the camera end.
Notes before ordering
- Maximum distance is not stated by the manufacturer and depends on cable type and camera load. Tell us the cable and camera and we will confirm before quoting.
