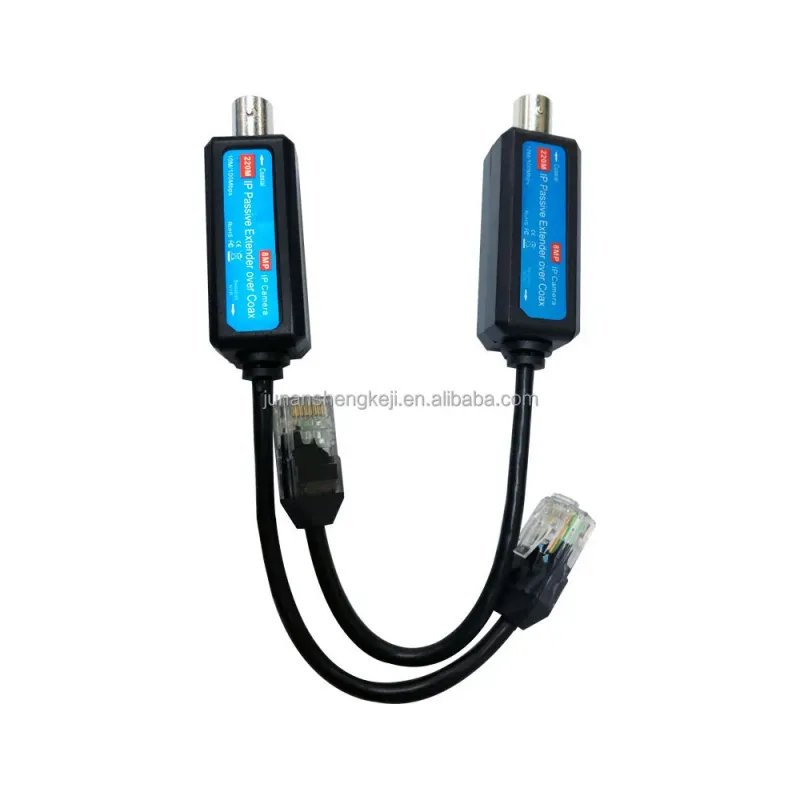

Model: SP-EC302
IP over Coax Extender Kit, up to 220 m
Passive transmitter and receiver pair that carries an IP camera network link over existing RG58, RG59 or RG6 coax, so analog systems can be upgraded without new cable.
- RG59 / RG6 coax
- Up to 220 m
- 1 channel
- Passive
- Minimum order
- 1 pc
- Samples
- Available
Specifications
| Channels | 1 |
|---|---|
| Cable | RG58, RG59 or RG6 coax |
| Ethernet | 10/100 Mbps, RJ45 |
| Distance | Up to 220 m (manufacturer rating) |
| Connector | BNC (coax) + RJ45 (network) |
| Type | Passive, no external power for the converters |
| Housing | Plastic |
Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.
Typical use
Replace an analog camera with an IP camera and keep the existing coax. Fit one converter at the camera end and one at the NVR or switch end.
Notes before ordering
- The camera still needs power. Tell us how the camera is powered today and we will confirm the setup.
- Achievable distance and bandwidth depend on the condition and quality of the existing coax.
