Model: SP-EC304
PoE over Coax Extender Kit, 500 m

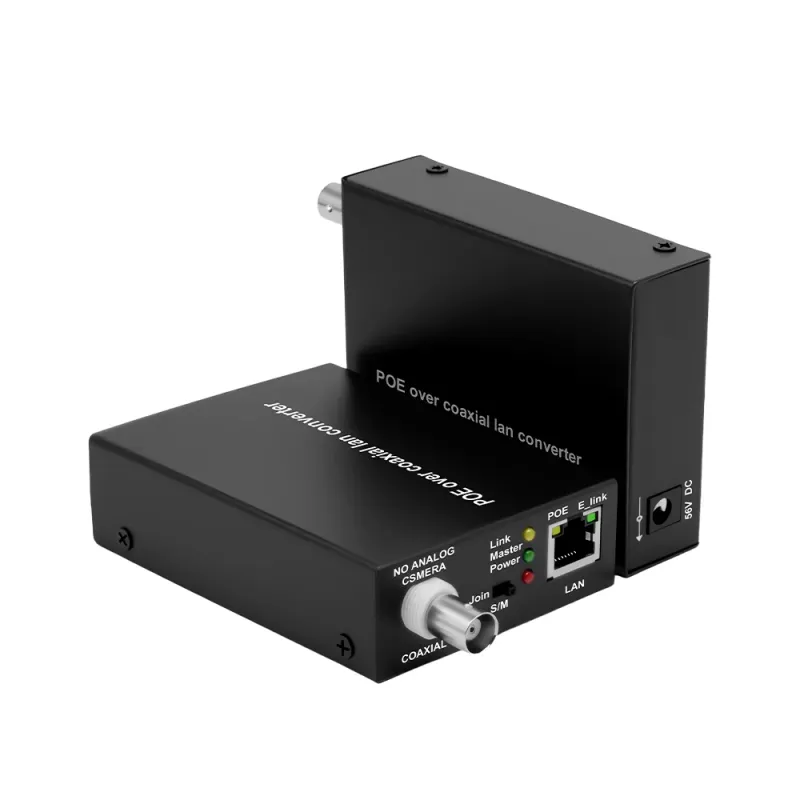

Transmitter and receiver pair that carries Ethernet and PoE over existing coax, powering the IP camera from the head end.
- PoE out 15.4 W
- 500 m coax
- 10/100 Mbps
- Minimum order
- On request
- Samples
- Available
Specifications
| Network | 10/100 Mbps |
|---|---|
| Distance | Up to 500 m over coax (BNC), 100 m on the RJ45 side |
| Power input | DC 48–57 V (5.5 × 2.1 mm) |
| PoE output | 15.4 W at the camera end |
| Power consumption | < 5 W |
| Housing | Aluminium alloy |
| Supplied as | Transmitter + receiver pair |
Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.
Typical use
Upgrade an analog site to IP without new cable or power at the camera. Power the head-end unit with 48–57 V; the camera-end unit outputs PoE to the IP camera.
Notes before ordering
- 15.4 W at the camera suits fixed IP cameras. PTZ or heater cameras need more power.
- Results depend on the condition of the existing coax.
