Products / PoE & Network / Ethernet over Coax / SP-EC303

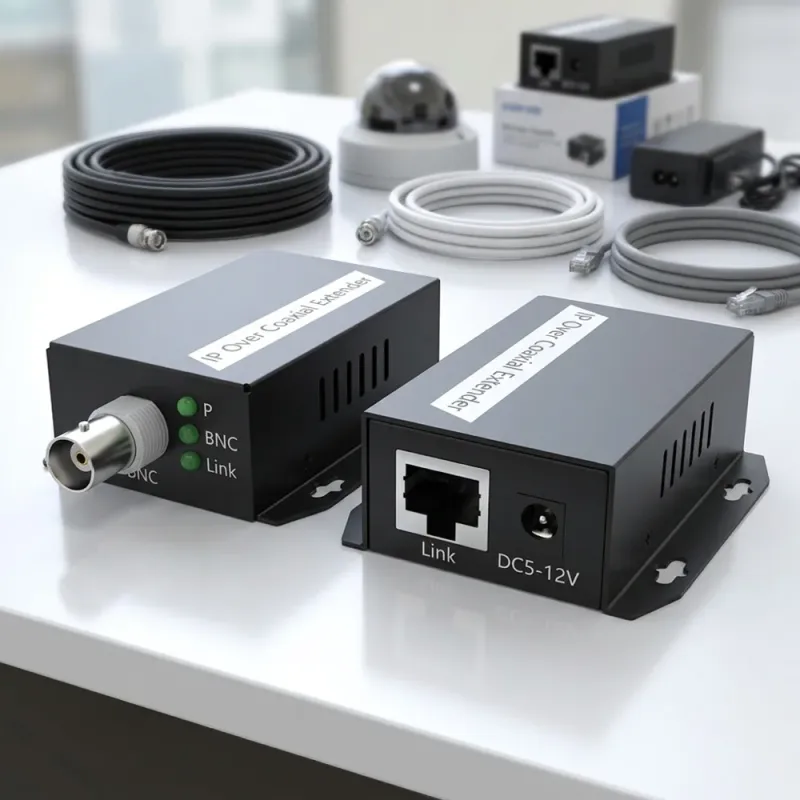

SP-EC303 pair of black metal IP over coax extenders with BNC and RJ45 ports
Model: SP-EC303

IP over Coax Extender Kit, 500 m, 12 V

Active Ethernet over coax pair for longer runs than passive converters. Each unit runs from a 5–12 V DC supply.

  • 500 m coax
  • 10/100 Mbps
  • DC 5–12 V
Minimum order
On request
Samples
Available
Get a Quote for SP-EC303

Specifications

Network10/100 Mbps
DistanceUp to 500 m over coax (BNC), 100 m on the RJ45 side
MediaCoax; also works over twisted pair or telephone line
Power inputDC 5–12 V (5.5 × 2.1 mm), per unit
Power consumption< 5 W
IndicatorsLink, BNC
Operating temperature-20 to +55 °C
HousingMetal
Supplied asTransmitter + receiver pair

Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.

Notes before ordering

  • Each unit needs its own DC supply, and the camera needs separate power. For PoE cameras without local power, use SP-EC304.
