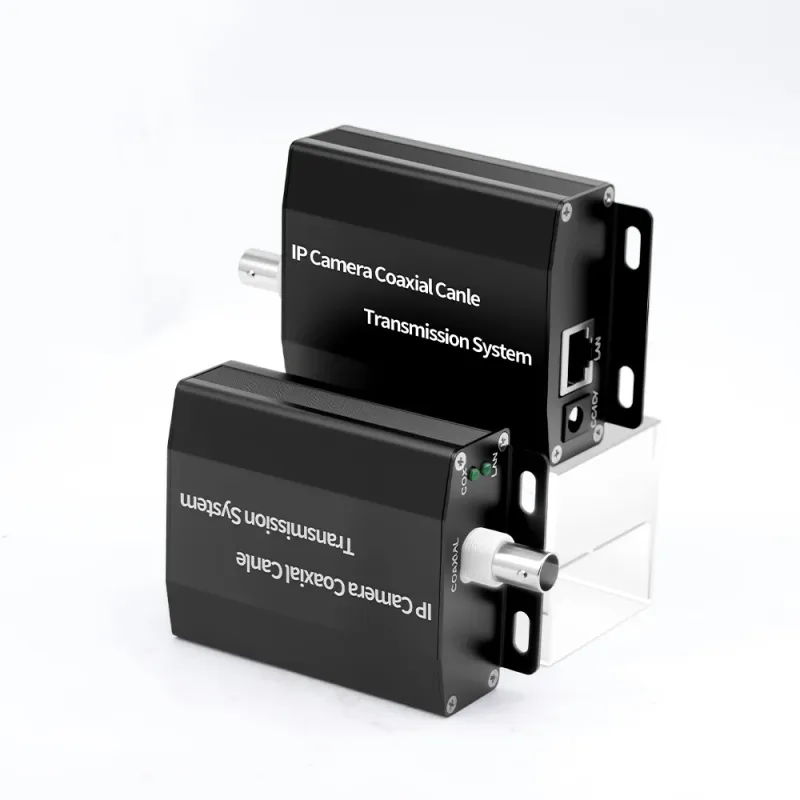

SP-EC301 pair of black aluminium long-range IP over coax extenders

Model: SP-EC301

Long-Range IP over Coax Extender Kit, 2000 m

Long-distance Ethernet extender pair for coax, twisted pair or telephone line runs up to 2 km.

Up to 2000 m
10/100 Mbps
Coax / twisted pair

Minimum order: On request
Samples: Available
OEM: Logo & packaging

Get a Quote for SP-EC301

Specifications

Network	10/100 Mbps
Distance	Up to 2000 m (manufacturer rating)
Media	Coax, twisted pair or telephone line
Line port	BNC
Power input	DC 12 V per unit (power supply not included)
Operating temperature	-10 to +60 °C
Size	107 × 64 × 27 mm
Housing	Aluminium alloy
Supplied as	Transmitter + receiver pair

Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.

Typical use

Reach cameras or access points on large sites such as car parks, campuses or elevator shafts over existing cable.

Notes before ordering

Power supplies are not included. Achievable bandwidth falls with distance and cable condition.
