Products / PoE & Network / PoE Extenders / SP-PE303

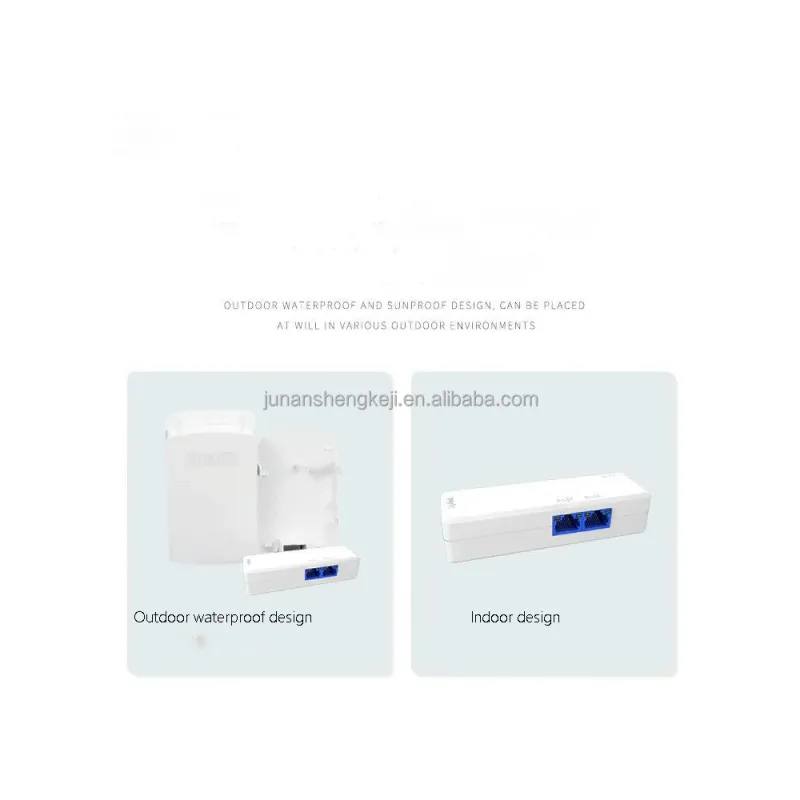

SP-PE303 gigabit PoE extender in indoor and outdoor housings
Model: SP-PE303

Gigabit 1-in-2-out PoE Extender, Cascadable

Gigabit PoE extender that splits one PoE line to two PoE cameras and can be cascaded for longer runs. Indoor and outdoor housings.

  • Gigabit
  • Cascadable
  • 130 m per segment
Minimum order
1 pc
Samples
Available
Get a Quote for SP-PE303

Specifications

Ports1 × PoE in, 2 × PoE out (RJ45)
Data rate10/100/1000 Mbps
PoE standardIEEE 802.3af/at
PoE input48 V from a standard PoE switch
DistanceUp to 130 m
Power versions30 W or 60 W (manufacturer rating)
Cascading30 W version 1–2 stages, 60 W version 2–3 stages
HousingIndoor or outdoor (weatherproof) version
External powerNot required

Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.

Typical use

Use where a gigabit link is needed beyond 100 m, for example 4K cameras or a remote access point. Place the extender at the end of a cable run; it is powered by that PoE line and feeds two PoE devices. Several units can be chained for longer distances.

Notes before ordering

  • Each cable segment can be up to 130 m. Each extender in a chain draws some power, and all downstream devices share what the first switch port supplies, so the 30 W version supports 1–2 cascade stages and the 60 W version 2–3. Tell us the cameras, cable lengths and switch model and we will check the power budget.
  • Specify indoor or outdoor housing when requesting a quote.
