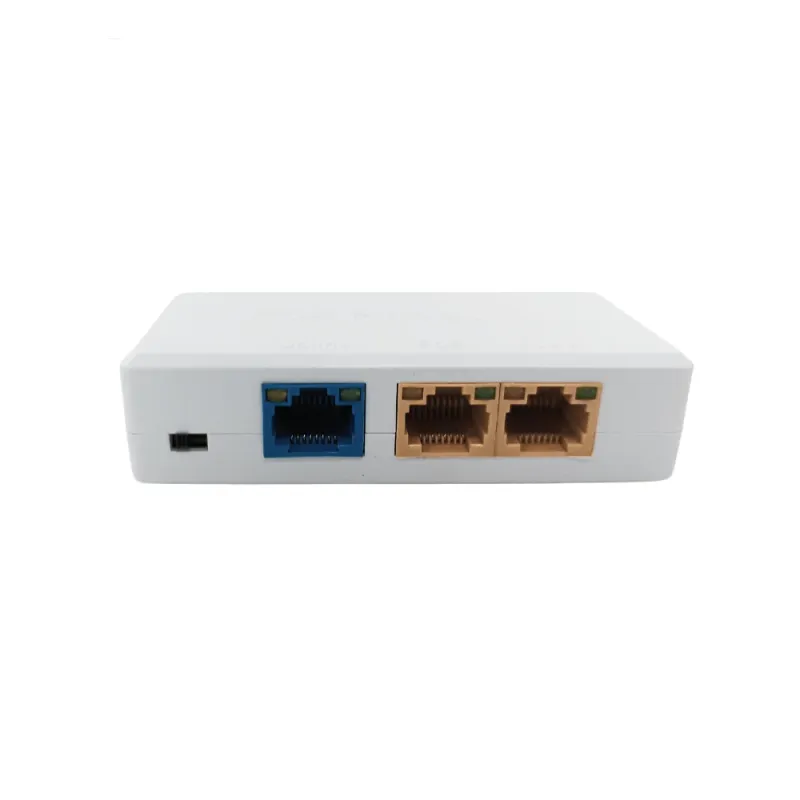

SP-PE302 PoE extender, one PoE input and two PoE output ports

Model: SP-PE302

1-in-2-out PoE Extender, 10/100 Mbps

Extends a PoE link past 100 m and splits it to two PoE cameras, powered entirely by the upstream PoE switch.

10/100 Mbps
802.3af
Up to 250 m

Minimum order: 5 pcs
Samples: Available
OEM: Logo & packaging

Specifications

Ports	1 × PoE in, 2 × PoE out (RJ45)
Data rate	10/100 Mbps
PoE standard	IEEE 802.3af
Power input	44–57 V DC, 0.5 A (from upstream PoE)
PoE output	44–57 V DC, 0.25 A
Distance	Up to 250 m (manufacturer rating, see notes)
VLAN mode	Supported
External power	Not required
Color	White

Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.

Typical use

Place the extender at the end of a cable run from a PoE switch. It is powered by that PoE link and passes data and power on to two PoE cameras, so one cable can serve two cameras beyond the usual 100 m Ethernet limit.

Notes before ordering

The extender adds no power of its own. Total power available to both cameras is limited by what the upstream switch port delivers, minus cable loss.
The 250 m figure is the manufacturer’s rating. Usable distance depends on cable quality (solid copper Cat5e/Cat6 recommended), camera load and installation. Tell us your cameras and cable lengths and we will check the power budget with you.
IEEE 802.3af. An 802.3af port supplies up to 15.4 W, which must cover both cameras and cable loss, so this extender suits low-power fixed cameras. Higher-power or PTZ cameras need a different solution.
