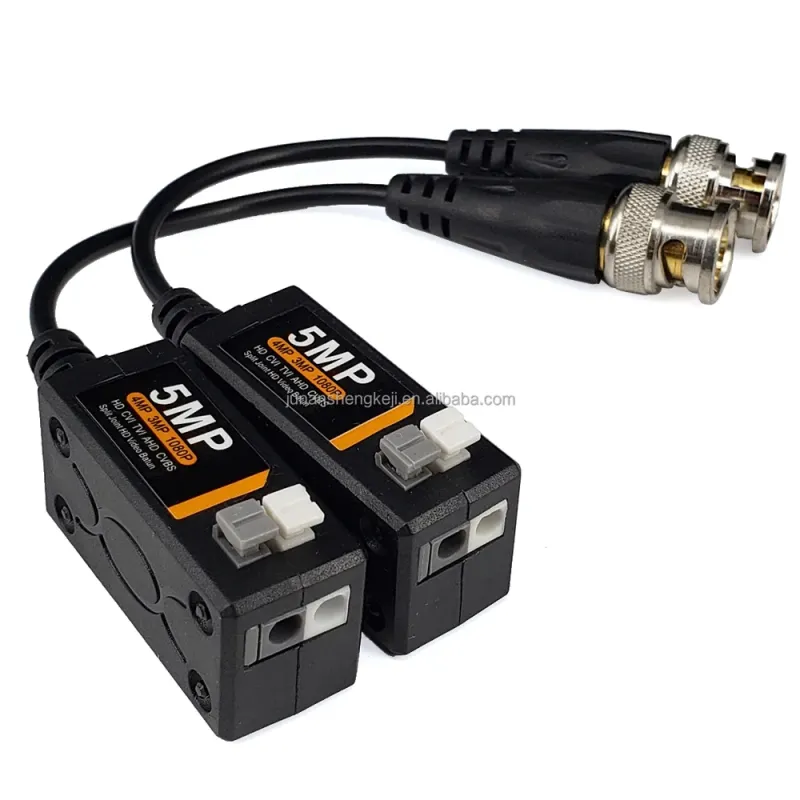

Model: SP-VB322
HD Video Balun with RJ45, 400 m
Passive balun with pure copper BNC and RJ45 port for HD analog cameras.
- RJ45
- Up to 5MP / 4K
- 400 m
- Minimum order
- 100 pcs
- Samples
- Available
Specifications
| Signals | CVI, TVI, AHD, CVBS (NTSC / PAL) |
|---|---|
| Bandwidth | 0–80 MHz |
| Distance | Up to 400 m (manufacturer rating) |
| Connector | Pure copper BNC male, 75 Ω |
Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.
