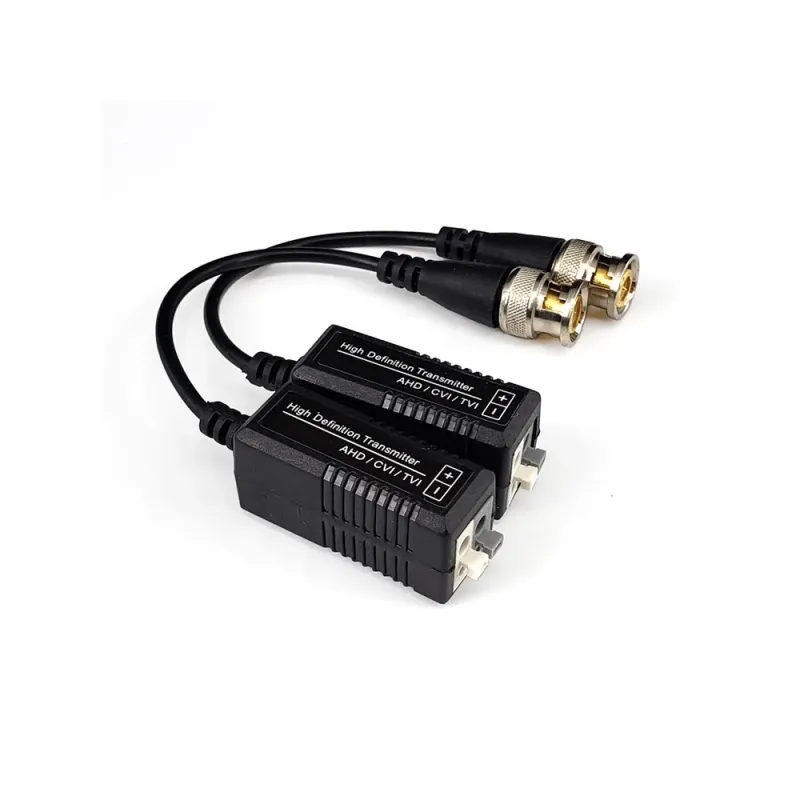

Model: SP-VB302
Passive HD Video Balun, up to 8MP
Passive video balun pair for AHD, TVI, CVI and CVBS cameras over Cat5e/Cat6.
- AHD/TVI/CVI/CVBS
- Up to 8MP
- Up to 600 m
- Minimum order
- 1 pair
- Samples
- Available
Specifications
| Signals | AHD, TVI, CVI, CVBS |
|---|---|
| Resolution | 1080P to 8MP |
| Distance | Up to 600 m (manufacturer rating, lower at higher resolution) |
| Connector | BNC male pigtail |
| Cable | Cat5/Cat5e/Cat6 UTP |
| Type | Passive, no power required |
| Housing | ABS plastic, black |
Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.
Typical use
Use one balun at the camera and one at the DVR, connected by a pair in a Cat5e/Cat6 cable. Camera power is supplied separately.
Notes before ordering
- Maximum distance falls as resolution rises. Tell us the camera resolution and cable length and we will confirm.
