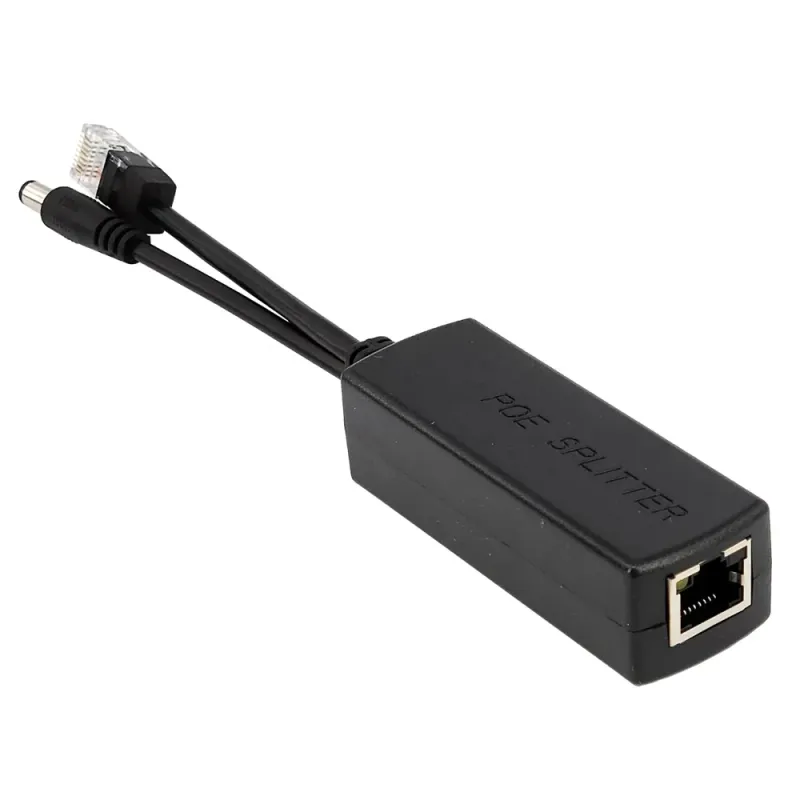

SP-PS306 PoE splitter with RJ45 data and 5.5 x 2.1 mm DC outputs

Model: SP-PS306

PoE Splitter, 48 V to 12 V DC 2 A

Splits a 48 V PoE line into Ethernet data plus 12 V DC to run non-PoE IP cameras from a PoE switch.

12 V 2 A out
802.3af
5.5 × 2.1 mm

Minimum order: 1 pc
Samples: Available
OEM: Logo & packaging

Specifications

PoE standard	IEEE 802.3af
Input	48 V PoE (RJ45)
Output	12 V DC, 2 A + Ethernet data (RJ45)
DC connector	5.5 × 2.1 mm
Data rate	10/100 Mbps, full duplex
Operating temperature	0 to +45 °C
Housing	Plastic

Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.

Typical use

Install next to a non-PoE IP camera or other 12 V device. Connect the PoE cable from the switch to the splitter input, then connect the camera’s network port and 12 V DC jack to the splitter outputs.

Notes before ordering

Rated for indoor use within 0 to +45 °C. For outdoor locations, install inside a weatherproof junction box.
IEEE 802.3af input. A 12 V 2 A (24 W) load exceeds what an 802.3af port can deliver (about 13 W at the device), so plan for cameras drawing about 12 W or less.
