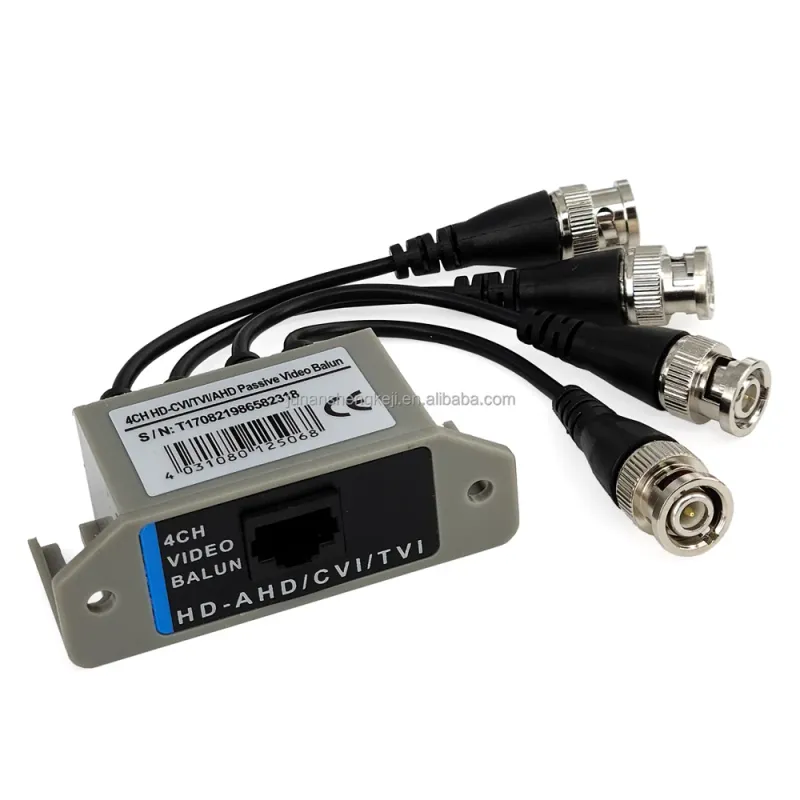

Model: SP-VB314
4-Channel Passive Video Balun
Carries four camera channels over a single Cat5e/Cat6 cable. Use in pairs, or at the DVR end with single-channel baluns at each camera.
- 4 channels
- 1 × RJ45
- Up to 8MP
- Minimum order
- 1 pc
- Samples
- Available
Specifications
| Channels | 4 |
|---|---|
| Signals | AHD, TVI, CVI, CVBS |
| Resolution | 720P to 8MP |
| Connections | 4 × BNC + 1 × RJ45 |
| Type | Passive |
| Housing | ABS plastic with mounting flange |
| Warranty | 2 years (manufacturer) |
Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.
Typical use
Install at the DVR rack to bring four cameras in on one cable, with a 4-channel balun or four single-channel baluns at the camera end.
Notes before ordering
- An 8-channel version is also listed by the manufacturer. Ask if you need it.
