Products / Power & Protection / Power Supplies / SP-PW318

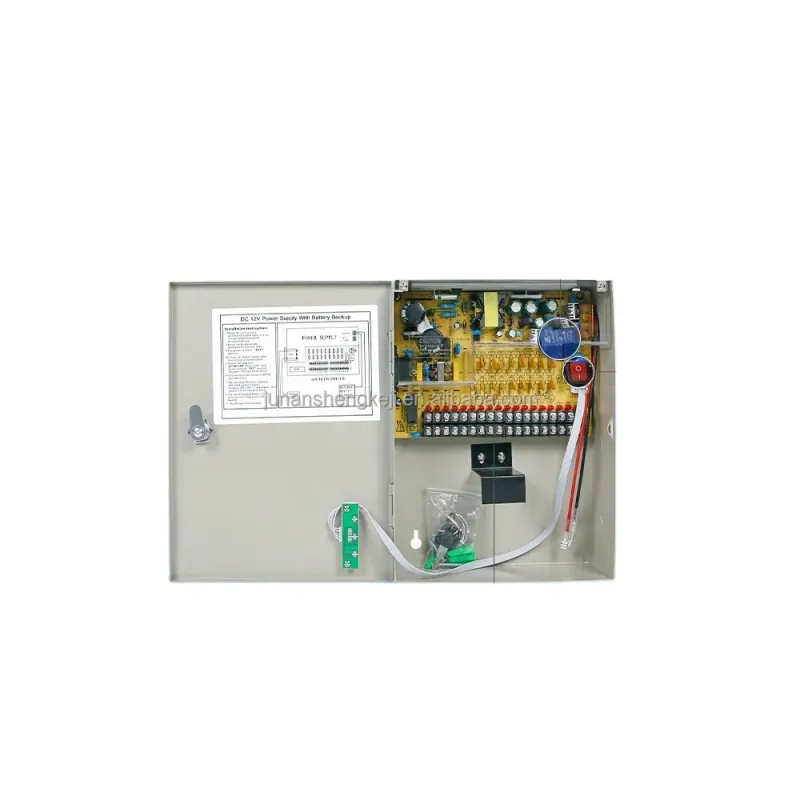

SP-PW318 metal CCTV power box with multi-channel output terminal board
Model: SP-PW318

Multi-Channel CCTV Power Box, 12 V 10 A

Metal power distribution box for larger systems, 12 V DC output with 4, 9 or 18 channel versions.

  • 12 V 10 A
  • 4 / 9 / 18 ch
  • Metal box
Minimum order
1 pc
Samples
Available
Get a Quote for SP-PW318

Specifications

Input110–220 V AC
Output12 V DC, 10 A total
Outputs4, 9 or 18 channels
ProtectionOverload, overvoltage, overcurrent, short circuit
HousingMetal

Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.

Typical use

Central power for an 8- to 16-camera system from one cabinet.

Notes before ordering

  • Specify the channel count. Total current is shared by all outputs.
