Products / Power & Protection / Power Supplies / SP-PW314

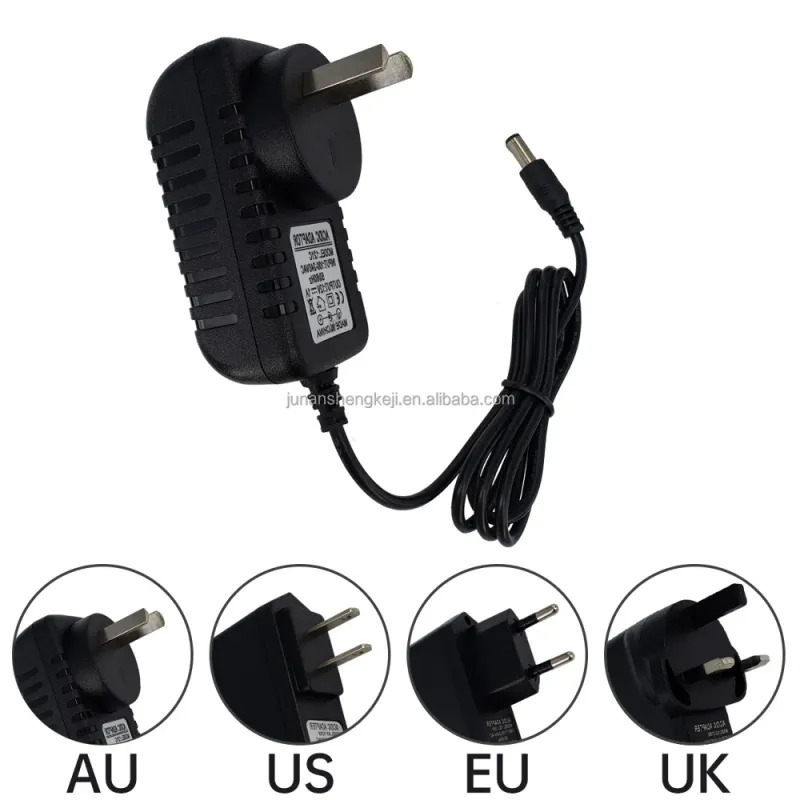

SP-PW314 Wall Plug Power Adapter Series, 5–24 V
Model: SP-PW314

Wall Plug Power Adapter Series, 5–24 V

Wall-plug adapters in common CCTV and LED outputs, with interchangeable plug types for each market.

  • 5 V – 24 V
  • 1–2 A
  • UK/EU/AU/US
Minimum order
1 pc
Samples
Available
Get a Quote for SP-PW314

Specifications

Outputs5 V 1 A, 5 V 2 A, 6 V 1 A, 9 V 1 A, 12 V 1 A, 12 V 2 A, 24 V 1 A
AC plugUK, EU, AU or US
DC connector5.5 × 2.5 mm or 5.5 × 2.1 mm
ProtectionOver-voltage, over-current, over-temperature, short circuit
HousingPC + ABS

Manufacturer specification. Contact us to confirm compatibility with your equipment before ordering.

Notes before ordering

  • State output and plug type for each order line.

More Power Supplies

Compare all
SP-PW301 Waterproof Power Supply, 12 V 20 W, IP67

Waterproof Power Supply, 12 V 20 W, IP67

Model: SP-PW301
Output
12 V DC, 1.66 A
Input
AC 90–240 V, 50/60 Hz
MOQ 1 pcDetails
SP-PW302 Waterproof LED Driver, 24 V 100 W

Waterproof LED Driver, 24 V 100 W

Model: SP-PW302
Output
24 V DC, 4.2 A
Input
AC 90–240 V, 50/60 Hz
MOQ 1 pcDetails
SP-PW303 Plug-In Power Adapter, 12 V 1 A

Plug-In Power Adapter, 12 V 1 A

Model: SP-PW303
Output
12 V DC, 1 A
Input
AC 100–240 V
Protection
Over-voltage, over-current, over-temperature, short circuit
MOQ 1 pcDetails
SP-PW304 12 V 2 A desktop power adapter with DC plug

CCTV Power Adapter, 12 V 2 A

Model: SP-PW304
Output
12 V DC, 2 A
Input
100–240 V AC, 50/60 Hz
Details
